Application Flexibility
IP65 protection rating enables more flexible application scenarios.
Flexible Settings
Supports simultaneous access to PV, diesel generators, batteries, and loads. Offers strong adaptability and the ability to flexibly configure various operating modes.
Expansion Support
Supports up to 6 parallel connections and is scalable up to 30 kW.
Advantages
Savings on additional installation and commissioning costs.
Reduce the use of fossil fuels and be more environmentally friendly.
Spread renewable energy
Continuous and stable power supply.
The expansion of photovoltaic systems will be even more convenient in the future.

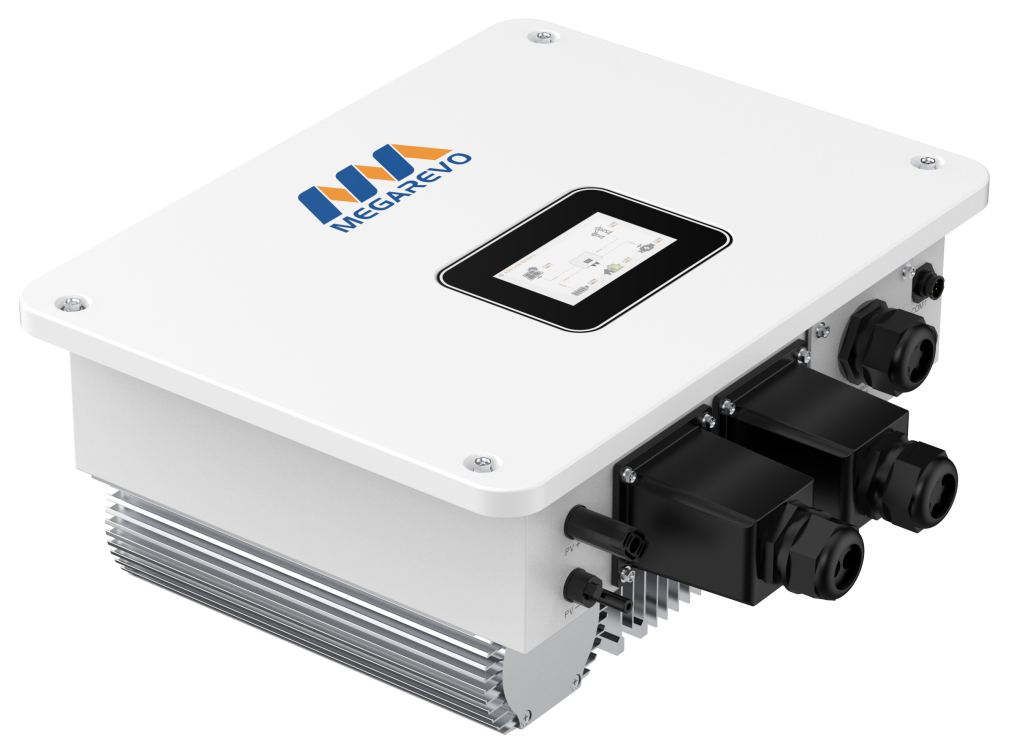

Autonomous inverter 05KL1D
| Model | O5KL1 | O5KL1D | O6KL1 | O6KL1D |
| PV input | ||||
| Max. input power (kW) | 7.5 | 9 | ||
| MPPT tracker/strings | 1/1 | |||
| MAX PV Input Voltage (V) | 450 | |||
| MPPT voltage range (V) | 100~440 | |||
| Max. input current (A) | 32 | |||
| Short circuit current (A) | 37 | |||
| Battery | ||||
| Nominal voltage (V) | 48 | |||
| Battery voltage range (V) | 40~56 | |||
| Max. charging/discharging current(A) | 100/100 | |||
| Battery type | Lithium /Lead-acid | |||
| Charging strategy for Li-Ion battery | Self-adaption to BMS | |||
| Off-grid output | ||||
| Nominal output power (kW) | 5 | 6 | ||
| Nominal output voltage (Vac) | 230 | |||
| Output frequency (Hz) | 50/60 | |||
| Max. apparent output current (A) | 21.7 | 26 | ||
| Max. output over current (A) | 26 | 31.2 | ||
| Power factor | 1 (0.8 leading-0.8 lagging) | |||
| THDu | <3% | |||
| Switching time (ms) | 10 | |||
| Grid input | ||||
| Nominal input voltage (Vac) | 230 | |||
| Grid voltage input range (Vac) | 176~270 | |||
| Rated grid frequency (Hz) | 50/60 | |||
| THDi | <3% | |||
| Type of grid connection | L+N+PE | |||
| AC input(On-GEN) | ||||
| Max. input power (kW) | 5 | 6 | ||
| Max. input current (A) | 21.7 | 26 | ||
| Protection | ||||
| Island protection | Yes | |||
| Insulation resistor detection | Yes | |||
| PV input reverse protection | Yes | |||
| Output over current protection | Yes | |||
| Output short protection | Yes | |||
| Output over voltage protection | Yes | |||
| Output under voltage protection | Yes | |||
| AC/DC surge protection | Yes | |||
| General data | ||||
| Max. efficiency | 96% | |||
| Operating temperature range (℃) | -25°C ~60℃ | |||
| Relative humidity | 5%-95% | |||
| Operating altitude (m) | 0-2000 | |||
| Ingress protection | IP65 | |||
| Weights (kg) | 17 | |||
| Dimensions W*D*H (mm) | 455*200*447 | |||
| Cooling | Natural convection | |||
| Noise emission (dB) | <35 | |||
| Display | Color screen | |||
| Communication With RS485/Wifi/GPRS/CAN/DRM | Possess/Optional/Optional/Possess/Possess | |||
| Standby Ioss (W) | <15 | |||
| Pollution degree | || | |||
| Topology | Non-isolated | |||
